sapphire window

Sapphire windows are applied as circuit substrates, epitaxial substrates, substrates, oiented substrates to GaN, GaAs. And other, Sapphire possesses nice light transmission in 0.20 ~ 5.50μm wave band, and the infrared ray transmission is hardly influenced by temperature, so the optical components made of sapphire are fully applied to military infrared equipment, observation window for high temperature furnaces, windows for counters, etc.

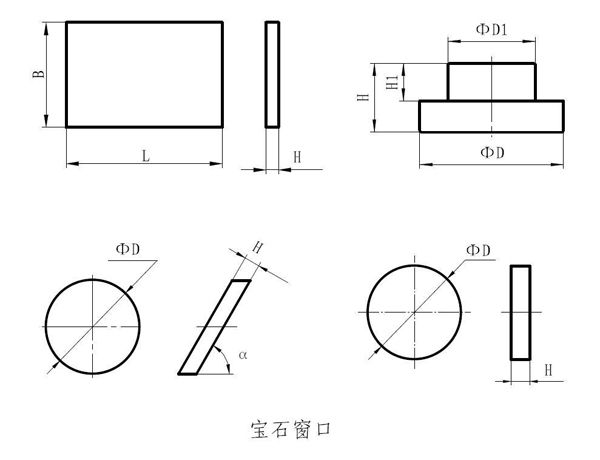

■Main Types

■Specification

■Technical Index

●Surface roughness: 0.2nm

●Axis Direction: C-Axis Deviation Min0.1°

●Surface quality: S/D10/5；S/D 20/10；S/D 40/20；S/D 60/40；S/D 80/50

●Infrared ray Transmission: when 633nm > 85%

●Flatness:：λ/4；λ/2；λ：633nm

● Center Deviation: 0.01mm

●Orientation: C，A，R，M

■Material

Synthetic sapphire/ruby, natural agate, crystallite glass and ceramic, BK glass ,other ultrahard materials ,etc.

■Order

Please feel free to contact us if you have any requirements of other ultrahard materials or specification.
