Round rod of corundum sapphire

作者：小编　日期：2020-07-30 23:06:30　点击数：

Rods jewels are made of sapphire/ruby, they are widely applied to medicine, accurate machine, accurate measure and inspection and laser technology. They also contribute a lot in the anticorrosion, wearable and high heat conduction environments.

Main types: sapphire/ruby rods jewels, single round end rods jewels, double round end rods jewels, jewel saddle pin etc.

■Main Types：

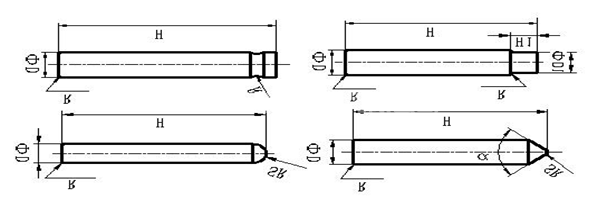

Round rod of corundum sapphire(图1)

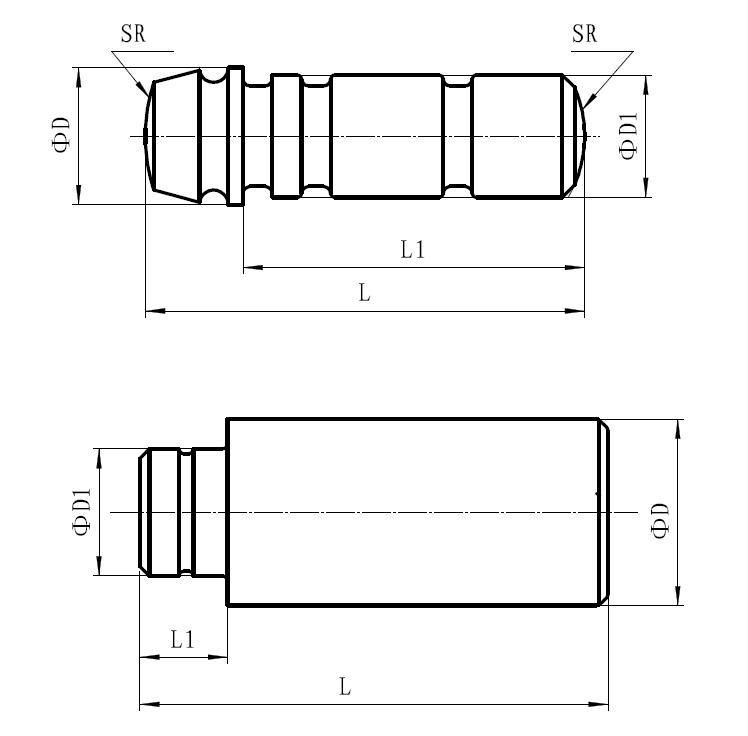

Round rod of corundum sapphire(图2)

■Technical Index

Jewel rod & piston	Item	Outside Diamete	Height	Chamfer
	Size	Φ0.40 ~ 30.0	2.00 ~ 150.00	Request to settle according to the customer
	Tolerance	0.004 ~ 0.05	0.03 ~ 0.25	Request to settle according to the customer
Surface quality: S/D40/20

■Material

Synthetic CZ/KY sapphire，ruby, natural agate, crystallite glass and ceramic, BK glass ,other ultrahard materials ,etc.
